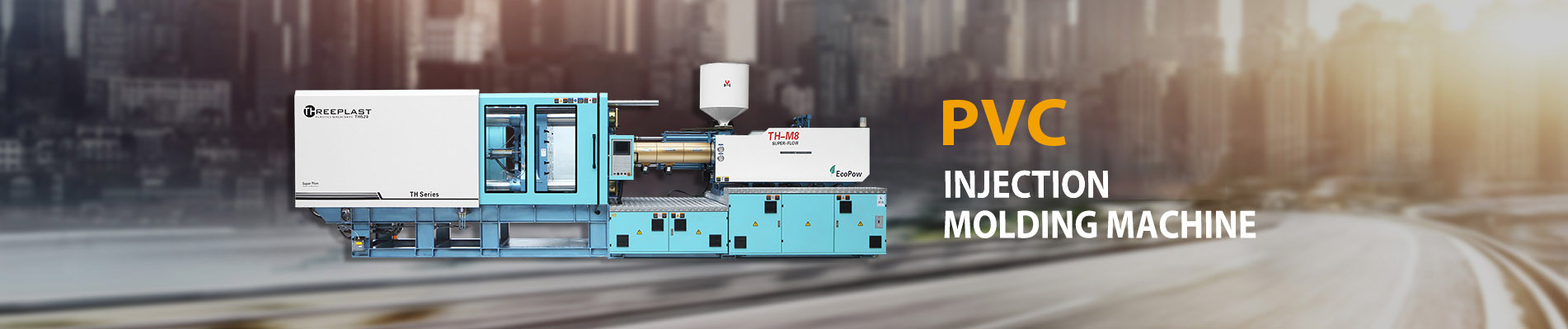

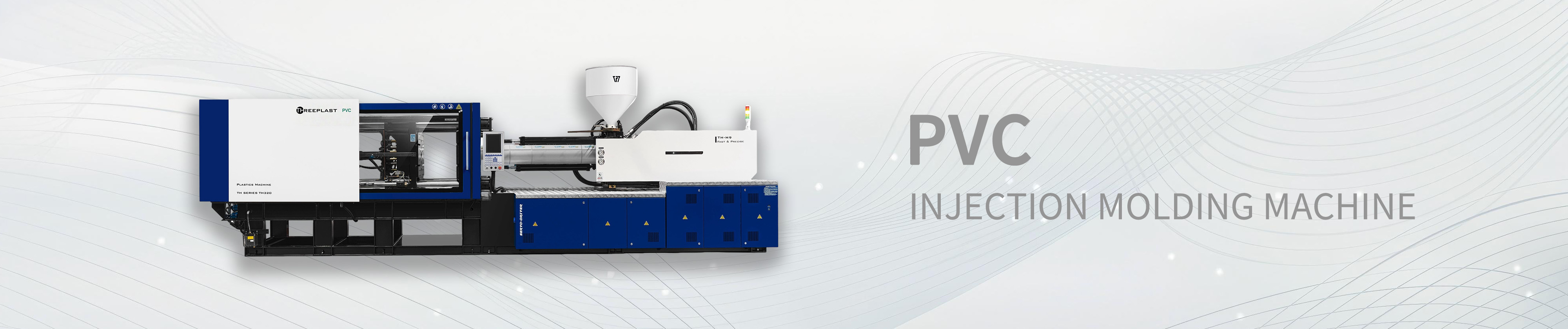

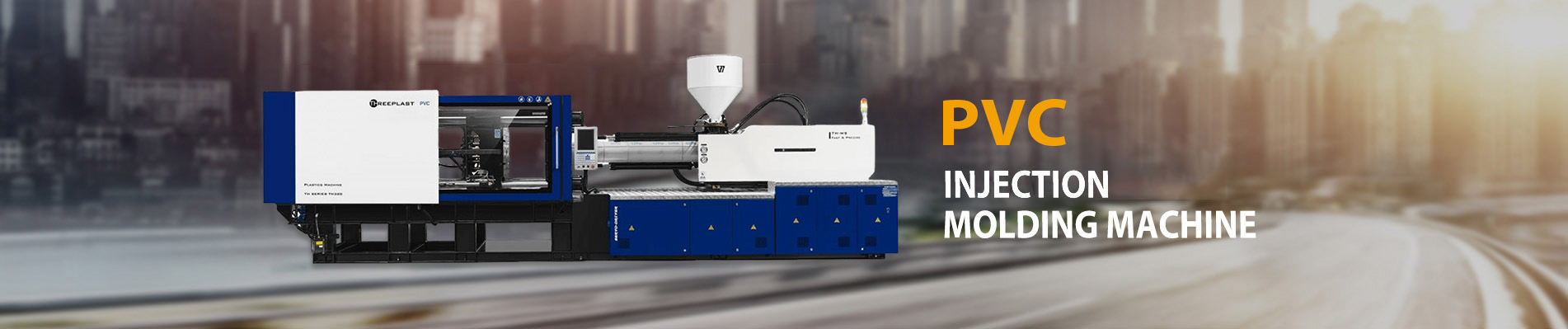

PVC Series

PVC Series

 This Servo drive machine is designed For your PVC products Processing applications. This series of machinery is fast ,accurate and has Excellent Repeatability. THREEPLAST, pvc pipe fitting machine can help you reach a maximum producibility on a wide range of materials. with a electroplating screw & barrel. wear-resistant screw tip. High strength tie-bars and rigid platens. it all adds up to a unit, that will stay the course. Our PVC injection molding machine (pipe fittings making machine) gives consistently high quality and output with PVC material and with the most complex of molds .

High Speed Valve Response, reliable continual operation and optimum energy savings.

Excellent Wear-Resistant, corrosion resistant screw & barrel for the processing of materials with fiber additives and also fire retardant materials.

Screw Driven by high torque, variable speed, radial piston motor.

PID Temperature Control insures an accuracy of +/-1℃,thus the fluctuation of the temperature is very minimal. Cushion Monitoring can help the operator to check the quality of the product. I.e. if the injection end position is under the allowed tolerance that means that the product is within necessary required quality.

Proportional Valve control for pressure and volume settings.

Unique , Ultra Reliable . five point toggle clamping mechanism which is characterized by an almost ideal kinematic velocity feature.

Mold opening and closing speed are digitally set in 4 stages, each with variable adjustment on pressure, volume and position.

Injection Speed profiles digitally set at 5 selectable stages by time or distance. holding pressure by 4 stages and charging by 6 stages. Visit to know more about pipe fittings making machines today!

Unit Introduction

  • Clamping Unit
  • Injection Unit
  • Hydraulic Unit
  • Electrical Unit
Clamping Unit

1.Larger space between tie-bars,suitable for larger molds and multi-cavity needs.

2.Longer and wider guide length,higher repeatability precision,improve product quality and mold lifespan.

3.Better designed mechanical structure and toggle system faster cycle time,and improve production efficiency.

4.Upgraded parts,Graphite-copper bushes and slider used on tie-bar,ejector and movable platen,ensure fast and precise mold close and open.

5.THREEPLAST PET Preform Injection Molding Machine has European type ejector structure, larger space & convenient for maintenance.

6.Prepared enough space for upgrade and retrofits

7.Integrated and adjustment free mechanical safety bar,more safe and convenient

8.Much higher rigidity mechanical system,not noly.improves plastic injection molding machine's lifespan,but also can protect mold.

Injection Unit

1.Full supported injection unit with dual precise linear guide rails, ensure the best precision and fast start speed.

2.Dual carriage cylinders improve a better injection precision.

3.Injection unit steel pipes adopt pipe fitting to connect,no welding design ensure maintenance and after-service to be easier.

4.Upturning designed nozzle cover,production and maintenance to be easier.

5.Double-layer designed barrel cover to avoid operators" scald,ensure the safe production.

6.Imported high quality SKD61 material screw tip, check ring and thrust ring;a lot kinds of screws design can meet different plastic material and special processing injection molding needs.

7.Barrel PID controls the difference of temperature,less error.

Hydraulic Unit

1.Srandard equipped with precise and energy saving servo motor system,energy saving capacity can reach to 20%-80% than traditional injection machine.

2.World famous brands hydraulic parts ensure machine's reliability and fast response speed.

3.Visible and dischargeable oil tankmeasy for hydraulic circuit maintenance.

4.Ad opt modular adaptor valve blocks, hydraulic circuit and functions easy for up-grade and maintenance.

5.Self-sealed magnetic suction filter. make your maintenance more convenient.

6.Logical distribution of pump oil suction port, oil tank oil outlet and hydraulic pipe fits, easy for maintenance.

7.Germany DIN standard hydraulic pipe fitting with seal, G screw thread style plug, avoid oil pollution.

Electrical Unit

1. World well-known brands electric parts.

2. High quality large color screen controller, multi-language available.

3. Standard equipped LED three-color tower light with alarm, machine working situation is clear.

4. Modernized network management function available.

5. Wa later-proof rubber seal used on electric cabinet ensure high safety.

6. Machine program according to CE safety standard.

Function List

  • Clamping Unit
  • Injection Unit
  • Hydraulic System
  • Electrical System
  • Others

Function List - Clamping Unit

Function List - Injection Unit

Function List - Hydraulic System

Function List - Electrical System

Function List - Other



Remarks: “●” for standard, "○*' for option, "▬” for Not available

Universal Series

  • TH90PVC

    TH90PVC

    TH90PVC

    TH90PVC
    Injection Unit A B C
    Screw Diameter In 1.18 1.38 1.57
    mm 30 35 40
    Screw L/D ration L/D 23.5 22 19.2
    Shot volume in3 7.32 9.95 13.06
    Cm3 120 163 214
    Shot weight (PS) g 109 149 194
    oz 3.85 5.26 6.84
    Injection Pressure psi 38290.05 28137.31 21465.58
    Mpa 264 194 148
    Max screw speed rpm 250
    Clamping Unit
    Clamping Force KN / T 900 / 90
    U.S.ton 91.77
    Opening stroke In 13.58
    mm 345
    Tie-bars distance In 13.58 X 13.58
    mm 370 X 370
    Max.mold height In 14.96
    mm 380
    Min.mold height In 6.70
    mm 170
    Ejector Stroke In 3.58
    mm 91
    Ejector force KN 38
    U.S. ton 3.87
    General
    Sevor diver power Kw 15
    HP 20.12
    Heating capacity Kw 7.2
    HP 9.66
    Oil tank Capacity Litre 157
    Machine Dimensions In 13.45 X 3.61 X 5.90
    m 4.1 X 1.10 X 1.80
     Machine weight T 3.5
    Lbs 7716.17
  • TH110PVC

    TH110PVC

    TH110PVC

    TH110PVC
    Injection Unit A B C
    Screw Diameter In 1.50  1.65 1.77
    mm 38 42 45
    Screw L/D ration L/D 24 21.6 20.2
    Shot volume in3 12.57 15.38 17.64
    Cm3 206 252 289
    Shot weight (PS) g 185 227 260
    oz 6.53 8.01 9.17
    Injection Pressure psi 29007.54 23641.15 20740.39
    Mpa 200 163 143
    Max screw speed rpm 240
    Clamping Unit
    Clamping Force KN / T 1100 / 110
    U.S.ton 112.17
    Opening stroke In 14.17
    mm 360
    Tie-bars distance In 16.93 X14.96
    mm 430 X 380
    Max.mold height In 16.93
    mm 430
    Min.mold height In 6.69
    mm 170
    Ejector Stroke In 4.72
    mm 120
    Ejector force KN 45
    U.S. ton 4.59
    General
    Motor power Kw 15
    HP 20.12
    Heating capacity Kw 7.3
    HP 9.79
    Oil tank Capacity Litre 215
    Machine Dimensions In 15.42 X 4.20 X 6.89
    m 4.70 X 1.28X 2.10
    Machine weight T 3.9
    Lbs
  • TH130PVC

    TH130PVC

    TH130PVC

    TH130PVC
    Injection Unit A B C
    Screw Diameter In 1.50  1.65 1.77
    mm 38 42 45
    Screw L/D ration L/D 24.1 21.7 20.2
    Shot volume in3 11.78  14.34 16.48
    Cm3 193 235 270
    Shot weight (PS) g 178 217 249
    oz 6.28 7.65 8.78
    Injection Pressure psi 32778.52 26831.97 23351.07
    Mpa 226 185 161
    Max screw speed rpm 240
    Clamping Unit
    Clamping Force KN / T 1300 / 130
    U.S.ton 132.56
    Opening stroke In 15.35
    mm 390
    Tie-bars distance In 16.93 X16.93
    mm 430 X 430
    Max.mold height In 18.11
    mm 460
    Min.mold height In 7.09
    mm 180
    Ejector Stroke In 4.65
    mm 118
    Ejector force KN 53
    U.S. ton 5.40
    General
    Sevor diver power Kw 19
    HP 25.48
    Heating capacity Kw 7.4
    HP 9.92
    Oil tank Capacity Litre 220
    Machine Dimensions In 15.81 X 4.20 X 6.89
    m 4.82 X 1.28X 2.10
    Machine weight T 4.4
    Lbs 9,700.34



  • TH160PVC

    TH160PVC

    TH160PVC

    TH160PVC
    Injection Unit A B C
    Screw Diameter In 1.65  1.77 1.97
    mm 42 45 50
    Screw L/D ration L/D 23.6 22 19.6
    Shot volume in3 19.39  22.92 28.12
    Cm3 325 374 461
    Shot weight (PS) g 296 340 420
    oz 10.44 11.99 14.82
    Injection Pressure psi 31618.21 27557.16 22335.8
    Mpa 218 190 154
    Max screw speed rpm 240
    Clamping Unit
    Clamping Force KN / T 1600 / 160
    U.S.ton 163.15
    Opening stroke In 17.13
    mm 435
    Tie-bars distance In 18.90 X 18.90
    mm 480 X 480
    Max.mold height In 21.65
    mm 550
    Min.mold height In 8.27
    mm 210
    Ejector Stroke In 5.31
    mm 135
    Ejector force KN 62
    U.S. ton 6.32
    General
    Sevor diver power Kw 25
    HP 33.53
    Heating capacity Kw 9.9
    HP 13.28
    Oil tank Capacity Litre 300
    Machine Dimensions In 17.42 X 4.59 X 7.22
    m 5.31 X 1.40X 2.20
    Machine weight T 5.3
    Lbs 11,684.49
  • TH180PVC

    TH180PVC

    TH180PVC

    TH180PVC
    Injection Unit A B C
    Screw Diameter In 1.77  1.97 2.17
    mm 45 50 55
    Screw L/D ration L/D 24.5 22 20
    Shot volume in3 20.87  25.69 31.12
    Cm3 342 421 510
    Shot weight (PS) g 311 384 465
    oz 10.97 13.55 16.4
    Injection Pressure psi 32053.33 1965.26 21465.58
    Mpa 221 179 148
    Max screw speed rpm 240
    Clamping Unit
    Clamping Force KN / T 1800 / 180
    U.S.ton 183.55
    Opening stroke In 18.11
    mm 460
    Tie-bars distance In 20.28 X 18.70
    mm 515 X 475
    Max.mold height In 21.65
    mm 550
    Min.mold height In 8.27
    mm 210
    Ejector Stroke In 5.31
    mm 135
    Ejector force KN 62
    U.S. ton
    General
    Sevor diver power Kw 25
    HP 38.89
    Heating capacity Kw 11.5
    HP 15.42
    Oil tank Capacity Litre 305
    Machine Dimensions In 17.71 X 4.76 X 7.38
    m 5.40 X 1.45 X 2.25
    Machine weight T 5.8
    Lbs 12,786.80
  • TH210PVC

    TH210PVC

    TH210PVC

    TH210PVC
    Injection Unit A B C
    Screw Diameter In 1.77 1.97 2.17
    mm 45 50 55
    Screw L/D ration L/D 24.5 22 20
    Shot volume in3 23.31 28.74 34.78
    Cm3 382 471 570
    Shot weight (PS) g 347 429 519
    oz 12.24 15.13 18.31
    Injection Pressure psi 32053.33  25961.75  21465.58
    Mpa 221 179 148
    Max screw speed rpm 240
    Clamping Unit
    Clamping Force KN / T 2100 / 210
    U.S.ton 214.14
    Opening stroke In 19.29
    mm 490
    Tie-bars distance In 20.87 X 20.87
    mm 530 X 530
    Max.mold height In 21.65
    mm 550
    Min.mold height In 8.66
    mm 220
    Ejector Stroke In 5.75
    mm 146
    Ejector force KN 80
    U.S. ton 8.16
    General
    Sevor diver power Kw 31
    HP 41.57
    Heating capacity Kw 11.5
    HP 15.42
    Oil tank Capacity Litre 310
    Machine Dimensions In 18.37 X 4.72 X 7.54
    m 5.6 X 1.44 X 2.30
    Machine weight T 6.7
    Lbs 14770.95
  • TH260PVC

    TH260PVC

    TH260PVC

    TH260PVC
    Injection Unit A B C
    Screw Diameter In 2.17 2.36 2.56
    mm 55 60 65
    Screw L/D ration L/D 24.1 22 20.3
    Shot volume in3 39.12 46.56 36.37
    Cm3 641 763 596
    Shot weight (PS) g 584 695 815
    oz 20.59  24.51 28.74
    Injection Pressure psi 29297.62  24656.41  21030.47
    Mpa 202 170 145
    Max screw speed rpm 220
    Clamping Unit
    Clamping Force KN / T 2600 / 260
    U.S.ton 265.12
    Opening stroke In 22.05
    mm 560
    Tie-bars distance In 22.64 X 22.64
    mm 575 X 575
    Max.mold height In 22.83
    mm 580
    Min.mold height In 8.66
    mm 220
    Ejector Stroke In 5.31
    mm 135
    Ejector force KN 91
    U.S. ton 9.28
    General
    Sevor diver power Kw 31
    HP 41.57
    Heating capacity Kw 13.5
    HP 18.10
    Oil tank Capacity Litre 330
    Machine Dimensions In 20.34 X 5.35 X 7.61
    m 6.20 X 1.63 X 2.32
    Machine weight T 8.1
    Lbs 17857.44
  • TH280PVC

    TH280PVC

    TH280PVC

    TH280PVC
    Injection Unit A B C
    Screw Diameter In 2.36 2.56 2.76
    mm 60 65 70
    Screw L/D ration L/D 23.8 22 20.2
    Shot volume in3 47.41 55.65 64.56
    Cm3 777 912 1058
    Shot weight (PS) g 707 830 963
    oz 24.94  32.80  33.97
    Injection Pressure psi 30457.92 25526.64 21755.66
    Mpa 210 176 150
    Max screw speed rpm 200
    Clamping Unit
    Clamping Force KN / T 2800 / 280
    U.S.ton 285.52
    Opening stroke In 23.23
    mm 590
    Tie-bars distance In 24.61 X 24.61
    mm 625 X 625
    Max.mold height In 24.80
    mm 630
    Min.mold height In 8.66
    mm 220
    Ejector Stroke In 5.91
    mm 150
    Ejector force KN 91
    U.S. ton 9.28
    General
    Sevor diver power Kw 31
    HP 41.57
    Heating capacity Kw 18.3
    HP 24.54
    Oil tank Capacity Litre 450
    Machine Dimensions In 20.89 X 5.67 X 7.74
    m 6.37 X 1.73 X 2.36
    Machine weight T 9.1
    Lbs 20062.07
  • TH320PVC

    TH320PVC

    TH320PVC

    TH320PVC
    Injection Unit A B C
    Screw Diameter In 2.56 2.76 2.95
    mm 65 70 75
    Screw L/D ration L/D 23.8 22 20.6
    Shot volume in3 70.80  82.20  94.30
    Cm3 1161 1347 1546
    Shot weight (PS) g 1057 1226 1407
    oz 37.28 43.24 49.63
    Injection Pressure psi 30167.84 25961.75 22625.88
    Mpa 208 179 156
    Max screw speed rpm 192
    Clamping Unit
    Clamping Force KN / T 3200 / 320
    U.S.ton 326.30
    Opening stroke In 28.35
    mm 720
    Tie-bars distance In 28.74 X 26.77
    mm 730 X 680
    Max.mold height In 26.77
    mm 680
    Min.mold height In 11.81
    mm 300
    Ejector Stroke In 6.30
    mm 160
    Ejector force KN 102
    U.S. ton 10.40
    General
    Sevor diver power Kw 50
    HP 67.05
    Heating capacity Kw 22.8
    HP 30.58
    Oil tank Capacity Litre 690
    Machine Dimensions In 22.63 X 6.07 X 7.71
    m 6.90 X 1.85X 2.35
    Machine weight T 12.7
    Lbs 26455.44
  • TH400PVC

    TH400PVC

    TH400PVC

    TH400PVC
    Injection Unit A B C
    Screw Diameter In 2.76 2.95 3.15
    mm 70 75 80
    Screw L/D ration L/D 23.6 22 20.5
    Shot volume in3 91.60  105.20  119.60
    Cm3 1501 1723 1960
    Shot weight (PS) g 1366 1568 1784
    oz 48.18 55.30  62.92
    Injection Pressure psi 28862.50  25091.52 22045.73
    Mpa 199 173 152
    Max screw speed rpm 170
    Clamping Unit
    Clamping Force KN / T 4000 / 400
    U.S.ton 407.88
    Opening stroke In 28.35
    mm 720
    Tie-bars distance In 28.74 X 28.74
    mm 730 X 730
    Max.mold height In 31.50
    mm 800
    Min.mold height In 12.99
    mm 330
    Ejector Stroke In 7.09
    mm 180
    Ejector force KN 113
    U.S. ton 11.52
    General
    Sevor diver power Kw 62
    HP 83.14
    Heating capacity Kw 29.50
    HP 39.56
    Oil tank Capacity Litre 770
    Machine Dimensions In 24.27 X 6.23 X 7.71
    m 7.40 X 1.90 X 2.35
    Machine weight T 14.7
    Lbs 32407.91
  • TH450PVC

    TH450PVC

    TH450PVC

    TH450PVC
    Injection Unit A B C
    Screw Diameter In 2.76 2.95 3.15
    mm 70 75 80
    Screw L/D ration L/D 23.6 22 20.5
    Shot volume in3 91.60  105.20  119.60
    Cm3 1501 1723 1960
    Shot weight (PS) g 1366 1568 1784
    oz 48.18 55.30  62.92
    Injection Pressure psi 28137.31  24511.37 21610.62
    Mpa 194 169 149
    Max screw speed rpm 170
    Clamping Unit
    Clamping Force KN / T 4500 / 450
    U.S.ton 458.87
    Opening stroke In 31.50
    mm 800
    Tie-bars distance In 32.68 X 30.71
    mm 830 X 780
    Max.mold height In 31.50
    mm 800
    Min.mold height In 12.99
    mm 330
    Ejector Stroke In 7.87
    mm 200
    Ejector force KN 113
    U.S. ton 11.52
    General
    Sevor diver power Kw 62
    HP 83.14
    Heating capacity Kw 29.50
    HP 39.56
    Oil tank Capacity Litre 950
    Machine Dimensions In 24.60 X 6.40 X 7.87
    m 7.50 X 1.95X 2.40
    Machine weight T 17.4
    Lbs 38360.39
  • TH500PVC

    TH500PVC

    TH500PVC

    TH500PVC
    Injection Unit A B C
    Screw Diameter In 2.95 3.15 3.35
    mm 75 80 85
    Screw L/D ration L/D 23.1 21.7 20.4
    Shot volume in3 105.40  120.00  135.40
    Cm3 1727 1965 2219
    Shot weight (PS) g 1572 1788 2019
    oz 55.44 62.06 71.21
    Injection Pressure psi 26977.01  23786.18  21030.47
    Mpa 186 164 145
    Max screw speed rpm 138
    Clamping Unit
    Clamping Force KN / T 5000 / 500
    U.S.ton 509.85
    Opening stroke In 33.86
    mm 860
    Tie-bars distance In 34.25 X 31.89
    mm 870 X 810
    Max.mold height In 32.68
    mm 830
    Min.mold height In 13.78
    mm 350
    Ejector Stroke In 9.49
    mm 241
    Ejector force KN 152
    U.S. ton 15.50
    General
    Sevor diver power Kw 50 + 31
    HP 67.05 + 41.57
    Heating capacity Kw 33.50
    HP 44.92
    Oil tank Capacity Litre 950
    Machine Dimensions In 27.88 X 7.22 X 9.18
    m 8.50 X 2.20 X 2.80
    Machine weight T 21.8
    Lbs 45635.63
  • TH600PVC

    TH600PVC

    TH600PVC

    TH600PVC
    Injection Unit A B C
    Screw Diameter In 3.54 3.74 3.94
    mm 90 95 100
    Screw L/D ration L/D 23.2 22 20.9
    Shot volume in3 155.24  172.94  191.61
    Cm3 2544 2834 3140
    Shot weight (PS) g 2315 2579 2857
    oz 81.66  90.97  100.78
    Injection Pressure psi 26686.94 23931.22 21610.62
    Mpa 184 165 149
    Max screw speed rpm 150
    Clamping Unit
    Clamping Force KN / T 6000 / 600
    U.S.ton 611.82
    Opening stroke In 35.83
    mm 910
    Tie-bars distance In 36.61X 34.45
    mm 930X875
    Max.mold height In 35.43
    mm 900
    Min.mold height In 13.78
    mm 350
    Ejector Stroke In 11.61
    mm 295
    Ejector force KN 152
    U.S. ton 15.50
    General
    Sevor diver power Kw 50 + 31
    HP 67.05 + 41.57
    Heating capacity Kw 42.8
    HP 57.39
    Oil tank Capacity Litre 950
    Machine Dimensions In 33.46 X 7.22 X 8.89
    m 10.20 X 2.20X 2.71
    Machine weight T 26.9
    Lbs 59,304.35
  • TH730PVC

    TH730PVC

    TH730PVC

    TH730PVC
    Injection Unit A B C D
    Screw Diameter In 3.54 3.74 4.13 4.33
    mm 90 95 105 110
    Screw L/D ration L/D 25.3 24 21.7 20.7
    Shot volume in3 178.49 198.88 243.00  266.61
    Cm3 2925 3259 3982 4369
    Shot weight (PS) g 2662 2966 3623 3977
    oz 93.90  105.68 127.80  140.28
    Injection Pressure psi 28137.31 25236.60  20740.39 18854.90
    Mpa 194 174 143 130
    Max screw speed rpm 150
    Clamping Unit
    Clamping Force KN / T 7300 / 730
    U.S.ton 744.38
    Opening stroke In 39.37
    mm 1000
    Tie-bars distance In 40.16 X 38.19
    mm 1020 X 970
    Max.mold height In 37.8
    mm 960
    Min.mold height In 15.75
    mm 400
    Ejector Stroke In 11.02
    mm 280
    Ejector force KN 212
    U.S. ton 21.62
    General
    Sevor diver power Kw 50 + 50
    HP 37.29 + 37.29
    Heating capacity Kw 54.3
    HP 72.82
    Oil tank Capacity Litre 1000
    Machine Dimensions In 37.49 X 7.87 X 10.30
    m 11.43 X 2.4 X 3.14
    Machine weight T 33
    Lbs 72752.46
Do you want to know more about our products? contact us

Product search

You can search for products you want to know through the following search box

about us

Company Profile
Our Advantage
Honour
Partner
Sitemap

product

Universal Series
PET Series
PVC Series
Auxiliary Equipment
Mold

CONTACT US

Add:Mingtang-ao Industrial park, WuXiang town ,Yinzhou Distric, Ningbo ,China ,315111

Tel:+86-574-88402758

Fax:+86-574-89007718

Email:info@threeplast-machinery.com

© Copyrights 2019 Ningbo SURUI Machinery Co., Ltd. All Rights Reserved　Site map xml map　　design by rswl
Injection Moulding Machine manufacturer / supplier, offering lnjection Molding Machine, Moulding Machine. Injection machine ,etc
